Concrete-grade strength.
A fraction of the weight.

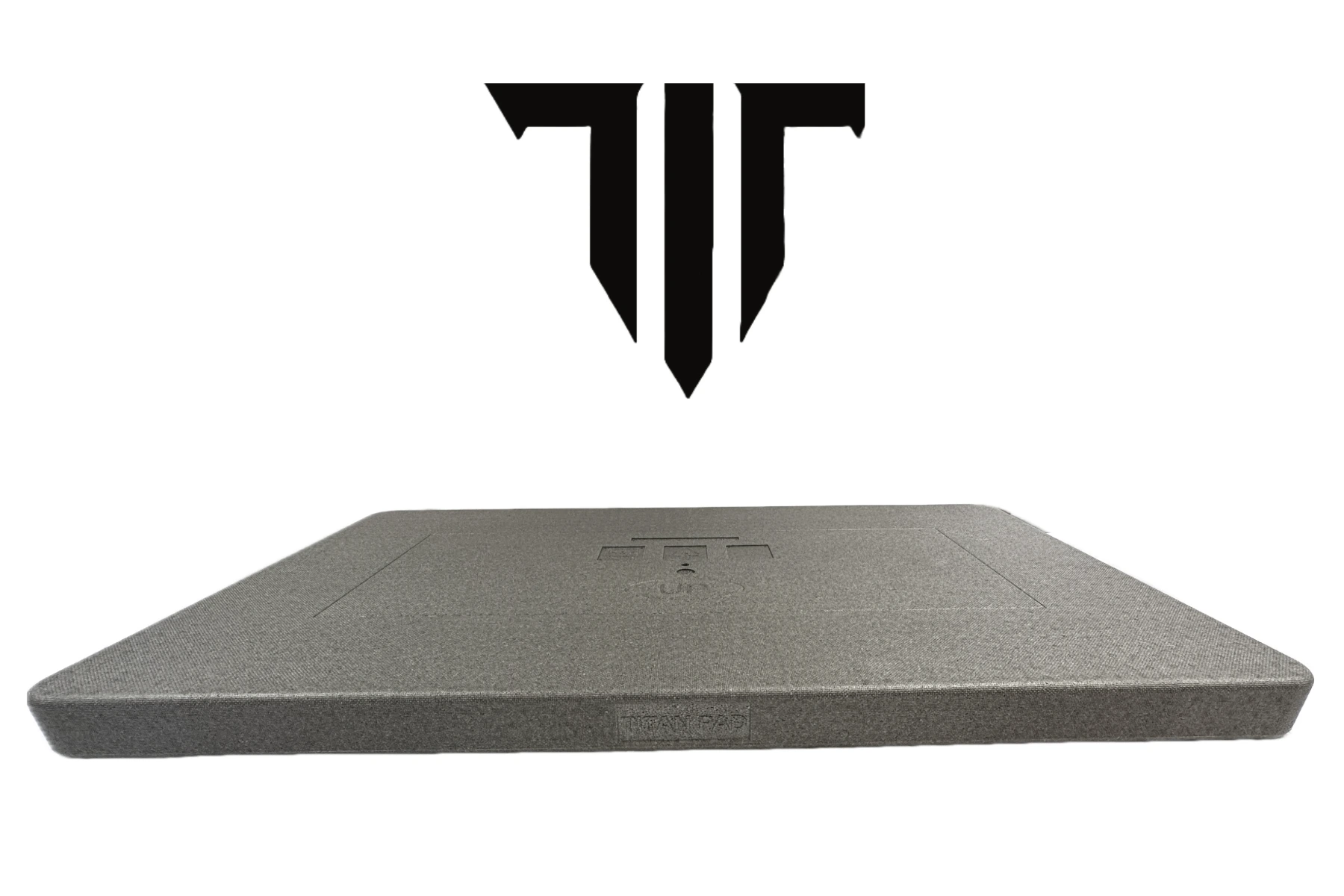

TitanPad Generator Series pads are engineered foundation platforms for residential, commercial, and industrial standby generators. Built from high-density EPP composite, TitanPad delivers concrete-grade load capacity at a fraction of the weight — installs in under five minutes, resists frost heave, and is universally compatible with all major generator brands.
| LOAD CAPACITY 2,000+ lb Static load rating. Field-tested across major generator brands. | INSTALL TIME < 5 min No pour, no cure time. One person, one trip. |
| TEMP. RANGE −40° / 180°F All-climate performance. Frost-heave resistant. | WARRANTY Lifetime Limited Lifetime. Will not crack, chip, rot or rust. |
Why TitanPad wins.
- Just 12 lb — one person, one trip, no equipment needed
- Stronger than concrete — 2,000+ lb load capacity
- Will not crack, chip, stain, rust or rot
- Frost-heave resistant — handles freeze-thaw cycles
- Vibration-dampening — reduces noise and movement
- Weather, UV and chemical resistant
- Non-conductive — safe for electrical equipment
- Universal mounting — Generac, Kohler, Briggs and more
- Maintenance-free — no sealing or annual upkeep
- Up to 100% post-consumer recycled content
Built to spec.
| Model | TP-54313 |
| Dimensions | 54″ × 31″ × 3″ (L × W × H) |
| Weight | 12 lb (5.4 kg) |
| Load capacity | 2,000+ lb static |
| Material | High-density EPP composite |
| Operating temp. | −40°F to 180°F (−40°C to 82°C) |
| Color | Charcoal grey |
| Made in | Canada |
| Anchoring | 3/8″ lag bolts (4″ or 6″) |
| Pack quantity | 5 per bundle / 25 per skid |
| Warranty | Limited Lifetime |
| Tested to | ASTM compression standards |
Concrete-grade strength.
A fraction of the weight.
TitanPad Generator Series pads are engineered foundation platforms for residential, commercial, and industrial standby generators. Built from high-density EPP composite, TitanPad delivers concrete-grade load capacity at a fraction of the weight — installs in under five minutes, resists frost heave, and is universally compatible with all major generator brands.
| LOAD CAPACITY 2,000+ lb Static load rating. Field-tested across major generator brands. | INSTALL TIME < 5 min No pour, no cure time. One person, one trip. |
| TEMP. RANGE −40° / 180°F All-climate performance. Frost-heave resistant. | WARRANTY Lifetime Limited Lifetime. Will not crack, chip, rot or rust. |
Why TitanPad wins.
- Just 12 lb — one person, one trip, no equipment needed
- Stronger than concrete — 2,000+ lb load capacity
- Will not crack, chip, stain, rust or rot
- Frost-heave resistant — handles freeze-thaw cycles
- Vibration-dampening — reduces noise and movement
- Weather, UV and chemical resistant
- Non-conductive — safe for electrical equipment
- Universal mounting — Generac, Kohler, Briggs and more
- Maintenance-free — no sealing or annual upkeep
- Up to 100% post-consumer recycled content
Built to spec.
| Model | TP-54313 |
| Dimensions | 54″ × 31″ × 3″ (L × W × H) |
| Weight | 12 lb (5.4 kg) |
| Load capacity | 2,000+ lb static |
| Material | High-density EPP composite |
| Operating temp. | −40°F to 180°F (−40°C to 82°C) |
| Color | Charcoal grey |
| Made in | Canada |
| Anchoring | 3/8″ lag bolts (4″ or 6″) |
| Pack quantity | 5 per bundle / 25 per skid |
| Warranty | Limited Lifetime |
| Tested to | ASTM compression standards |
